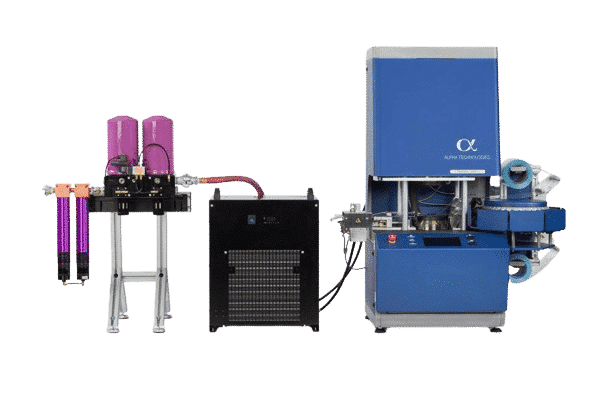

Sub-Zero Technology™ adds fast, accurate low-temperature testing to your Premier RPA, so you can measure cold-weather performance and tire predictors that used to require a DMA.
Tire performance predictors in one test
Total test time
Minimum temperature for cured samples

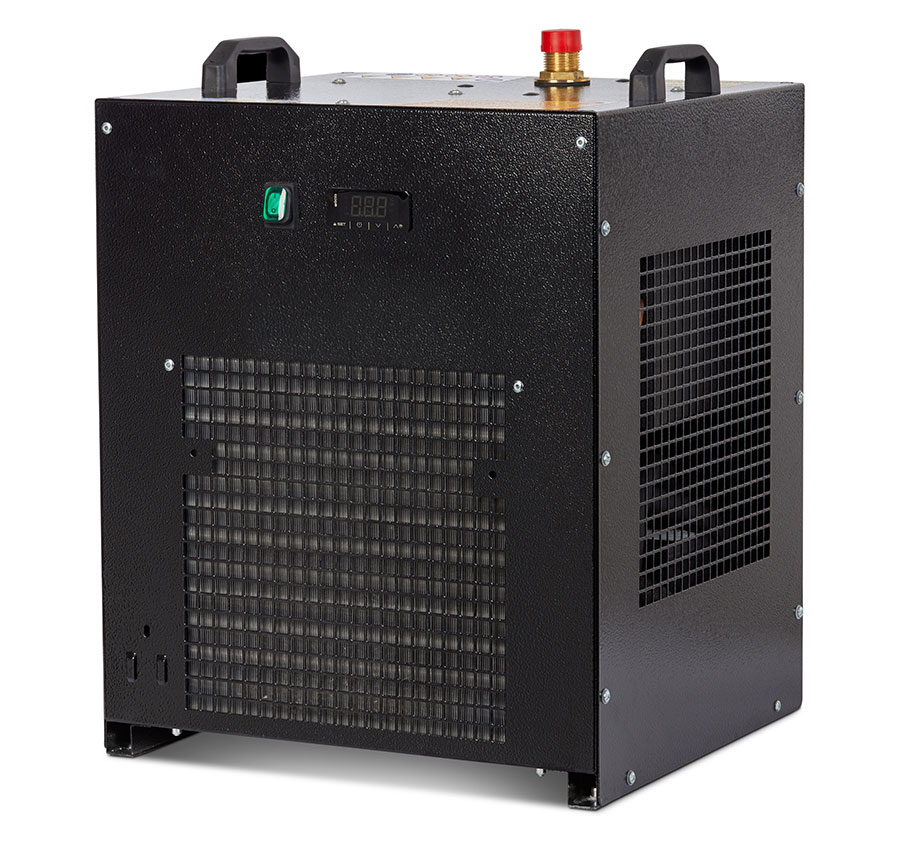

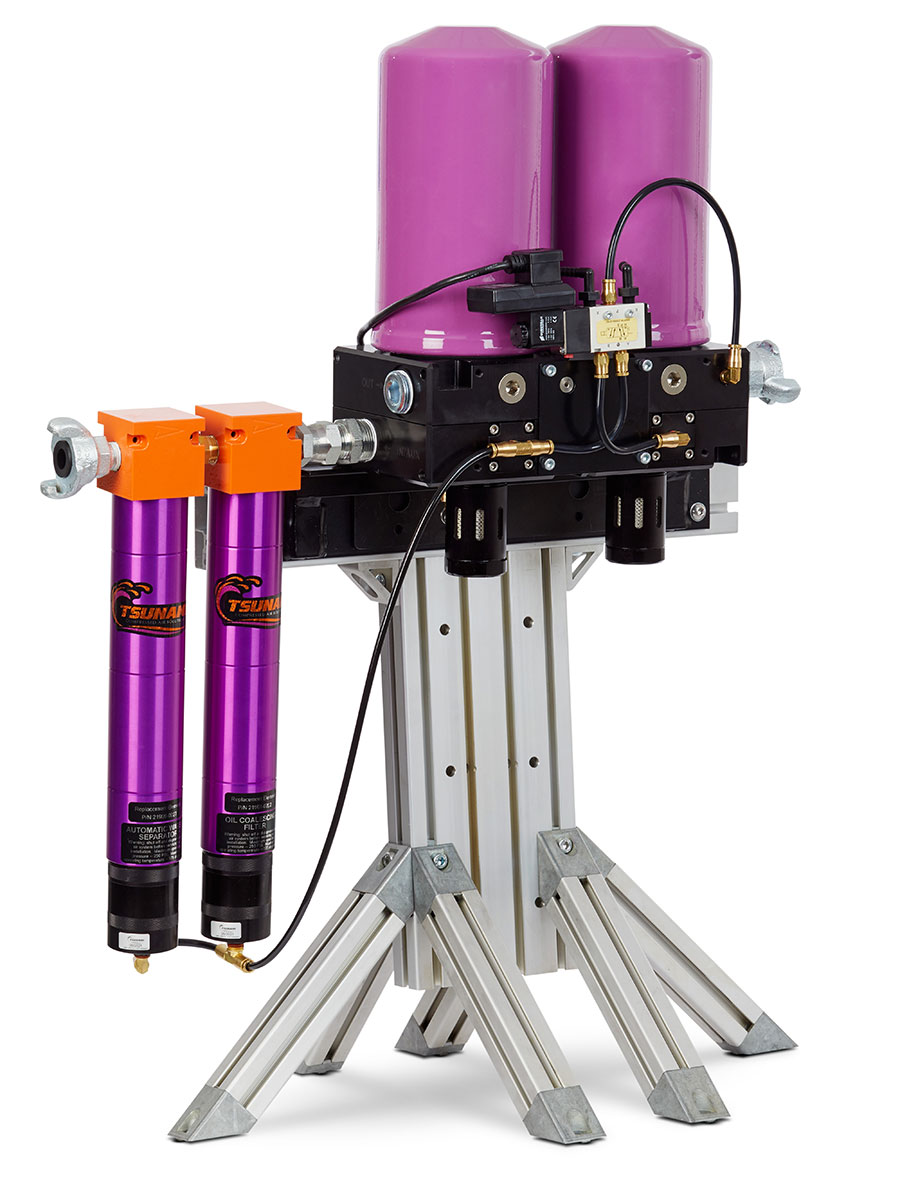

A drier and chiller replace liquid nitrogen
Now you can measure tire performance predictors in torsion: 11 key predictors in about 23 minutes. Instead of buying a DMA, hiring a skilled technician and waiting a long time for results, add Sub-Zero to your Premier RPA and get the data in one efficient, cost-effective tool.
Alpha combined a drier, a chiller and proprietary technology to test cured samples down to −25 °C — one really cool (pun intended) instrument.
A single Sub-Zero sequence covers uncured processing, cure and scorch, and seven tire performance predictors. See the Specifications tab for the full method table.
Sub-Zero conditions can run at the end of a standard RPA release test that measures uncured processing, cure/scorch and physical properties. You get predictors that were previously exclusive to a DMA, from the instrument already in your lab.
| # | Test method | Predictor | Temp. C | Variable | Time (min.) |
|---|---|---|---|---|---|
| 1 | D6204A | Processing | 100 | TanD, G*,G’ | 1.5 |
| 2 | D6204B | Processing | 100 | TanD, G*,G’ | 1.5 |
| 3 | VTA Cure | Scorch | 200 | TS1, TS2 | 5 |
| 4 | VTA Cure | Cure | 200 | Tc,ML,MH,S’Rate | 5 |
| 5 | Strain Sweep | Rolling Resistance | 60 | TanD | 3 |
| 6 | Strain Sweep | Heat Build up | 60 | TanD | 3 |
| 7 | Strain Sweep | Dry handling | 60 | G’ | 3 |
| 8 | Strain Sweep | Dry Traction | 30 | TanD | 3 |
| 9 | Strain Sweep | Wet Traction | 0 | TanD | 3 |
| 10 | Strain Sweep | Ice Traction | -10 | TanD | 3 |
| 11 | Strain Sweep | Winter Traction | -20 | G’ | 3 |
