From loading one sample at a time to queuing 224 samples for overnight testing, Alpha’s sample automation is custom designed for fast, reliable, operator-friendly handling on Premier MDR and Premier RPA.
Samples queued with Premier High Capacity
From manual queues to high-capacity trays
Film options for any application
Film rolls supported on every option
Alpha’s compact, lightweight sample handling options are custom designed for fast, reliable and operator-friendly handling. Every option integrates seamlessly with Premier MDR and Premier RPA instruments, for quick and easy retrofitting.
All options can use 2, 3 or 4 film rolls, and with more than 25 film options, Alpha has the right film for any application.
Pick the option that matches your sample volume, from a handful of samples to an overnight queue.
Manual loading of 5 to 10 square, round or irregular samples.

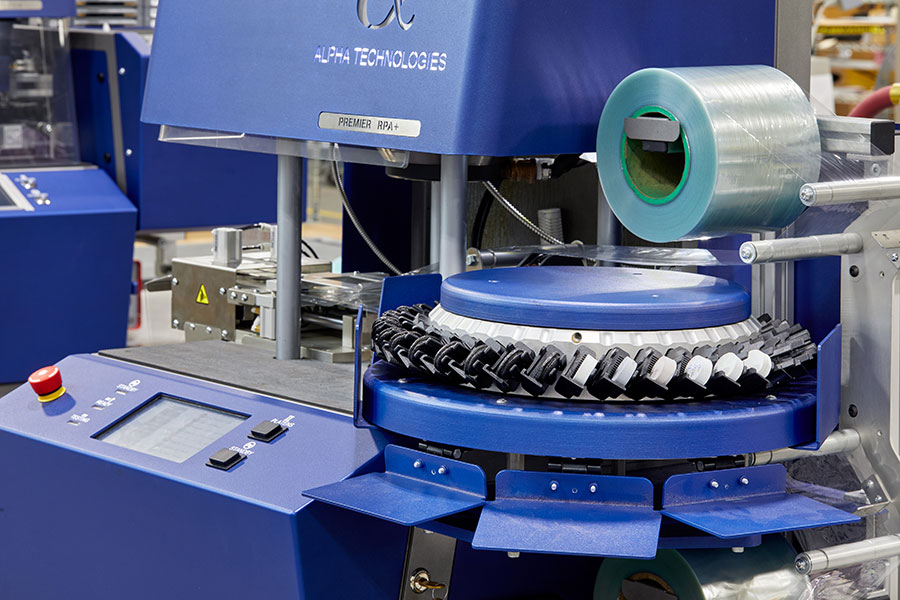

A carousel that holds up to 36 interchangeable sample carriers — an affordable mid-capacity option.
A load-and-go tray system and the fastest sample handling unit available worldwide.
| 5 Queue and 10 Queue | |
|---|---|
| Sample Capacity: | Up to 5 or 10 samples |
| Sample Size: | Up to 17 mm (0.67 in) thickness |
| Modes of Operation: | First-In First-Out (FIFO) |
| Electrical: | 24VAC supplied by instrument |
| Air Pressure: | 4.1 bar minimum (60 psi) |
| Dimensions: | Adds 254 mm – 800 mm (10 in – 31 in) of width to the instrument |
| Premier™ 3D | |
|---|---|
| Sample Capacity: | Up to 36 samples |
| Sample Size: | 4 – 14 mm (0.16 – 0.55 in) thickness |
| Modes of Operation: | First-In First-Out (FIFO) |
| Electrical: | 24VAC supplied by instrument |
| Air Pressure: | 4.1 bar minimum (60 psi) |
| Dimensions: | W: 432 mm (17 in), D: 457 mm (18 in), H: 195 mm (7.7in) |
| Weight: | 13.6 kg (30 lbs) |
| Premier™ High Capacity | |
|---|---|
| Sample Capacity: | Up to 224 samples, 16 samples per tray |
| Sample Size: | Up to 19 mm (0.75 in) thickness and 33 mm (1.30 in) diameter |
| Modes of Operation: | First-In First-Out (FIFO) Tray and Slot |
| Electrical: | 120VAC supplied by instrument |
| Air Pressure: | 4.1 bar minimum (60 psi) |
| Dimensions: | W: 457 mm (18 in), D: 660 mm (26 in), H: 330 mm (13 in) |
| Weight: | 34 kg (75 lbs) |
The industry-standard workhorse cure meter for QA/QC labs.
Measure compounds before, during and after cure in a single test.
Collect, analyze and share test data across instruments, labs and plants in one secure system.
Get a quote today and discover how Alpha’s rheology instruments, dedicated support and 60+ years of specialized expertise can advance your materials testing.
