One MDR tests one sample at a time, and that pace sets the limit for your whole lab. The patent-pending Premier MDR DUO puts dual dies in a single instrument, so you double throughput without doubling your bench space or your investment.
Testing capacity with dual dies
Instrument to house, run and maintain
Combined torque limit (212 dNm per head)
Maximum test temperature
Double testing capacity with a dual-die setup, cutting lead times and boosting productivity.
Lower capital cost by combining two testing units in one device.
A compact, patent-pending design minimizes bench space and optimizes lab layout.
One device means less maintenance and simpler operation.
When cure testing backs up, batch releases are delayed and no one is happy. Expanding capacity used to mean buying a second instrument, giving up bench space and spending double the capital. Not anymore.
The MDR DUO is built on the exact same platform as Alpha’s industry-leading MDR, so you keep the speed, precision and reliability you count on, while increasing capacity without a second machine.

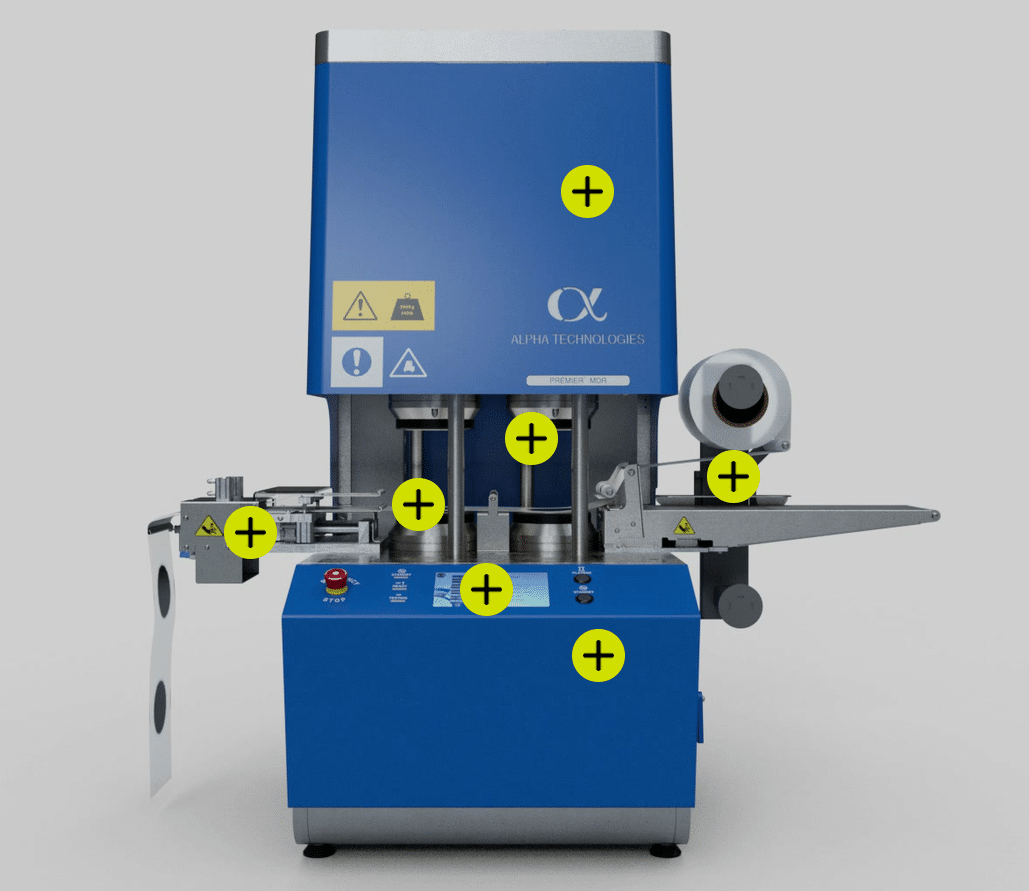

Take a closer look at the dual-die design, controls and workflow in our interactive virtual demo — no appointment needed.

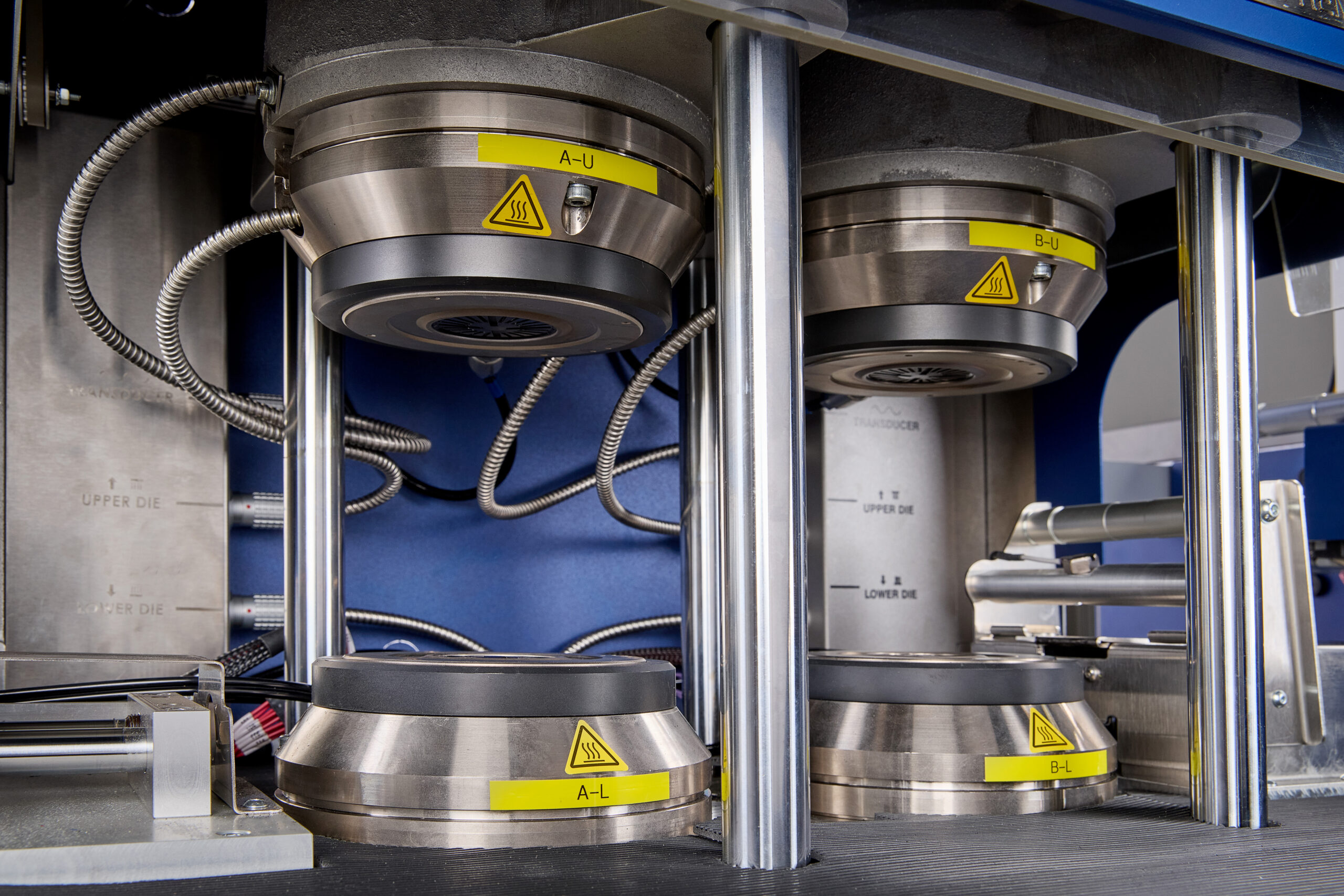

Dual dies let you test two samples at once, reducing lead time.
Lower upfront and maintenance costs, using the same certified Alpha OEM parts as the MDR.
Custom designed and manufactured to withstand any continuous production environment.
From the team that invented the moving die rheometer, backed by 60+ years of rheology expertise and approachable scientists and engineers.
Uptime is critical. A dedicated global service team is ready to help with calibration or repair.

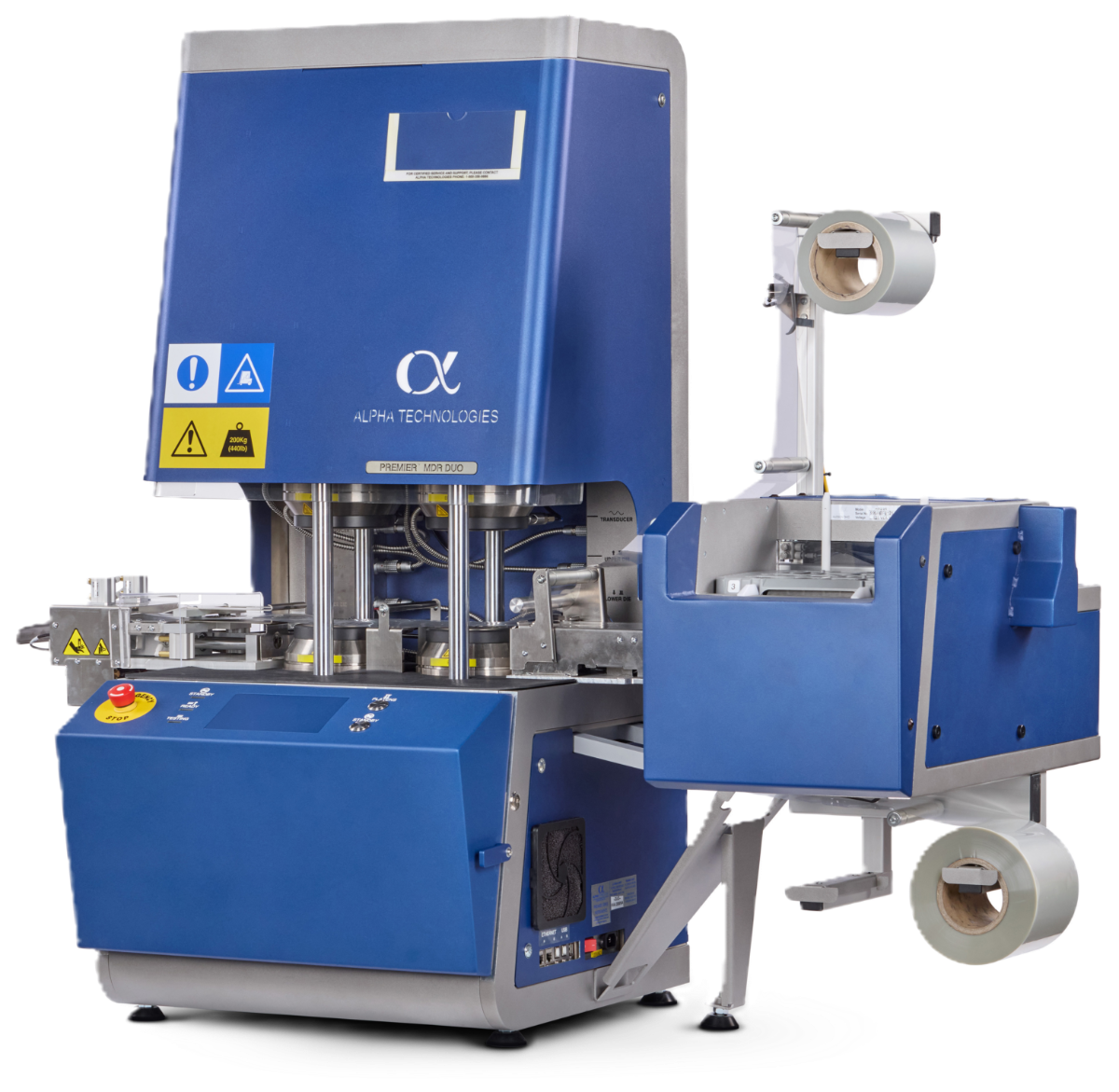

Available as a basic DUO or configured with sample automation for even higher throughput.
Start with the basic DUO or pair it with sample automation. Every configuration delivers the same dual-die performance.
Width: 57 cm (22.5 in)
Weight: 190 kg (420 lb)
Width: 124 cm (49 in)
Weight: 200 kg (440 lb)
Width: 140 cm (55 in)
Weight: 250 kg (550 lb)
| Specification | |
|---|---|
| Frequency | 100 cpm (1.667 Hz) |
| Temperature Range | Ambient to 446 °F (230 °C) |
| Strain | 0.5 Standard (7%); 0.2, 1.0 and 3.0 degrees (2.8%, 14% and 42%) |
| Torque range | 0.01-212 dNm (individual head limit), 0.01-270 dNm (combined torque limit) |
| Testing Standards | Meets ASTM D5289, ISO6502 and DIN 53529 |
| Electrical | 100/110/120/130 VAC +/-10%, 60 +/- 3Hz, 10amp, single phase 200,220,240,260 VAC +/-10%, 50 +/- 3Hz, 5amp, single phase |
| Air pressure | 85 psi minimum |
| Air flow rate | 20 sCFM minimum |
| Dimensions | Basic: W: 22.5in (57cm), H:48in (122 cm), D: 29in (74cm) Duo with 4Q: W: 49in (124cm), H:48in (122 cm), D: 29in (74cm) Duo with HC: W: 55in (140cm), H:48in (122 cm), D: 29in (74cm) |
| Weight | Basic: 420 lbs. [190 kg] Duo with 4Q: 440 lbs. [200 kg] Duo with HC: 550 lbs. [250 kg] |
| LCD Touch Display | No Display |
New dual-die design doubles rubber testing throughput in the same footprint. HUDSON, Ohio – August 3, 2026 – Alpha Technologies, a global leader …
The latest articles, white papers and application notes on Premier MDR testing.
Queue from 5 up to 224 samples for walk-away testing on Premier MDR and RPA.
Collect, analyze and share test data across instruments, labs and plants in one secure system.
Keep your DUO accurate and audit-ready with factory-trained calibration and service.
Get a quote today and discover how Alpha’s rheology instruments, dedicated support and 60+ years of specialized expertise can double your cure-testing capacity.
